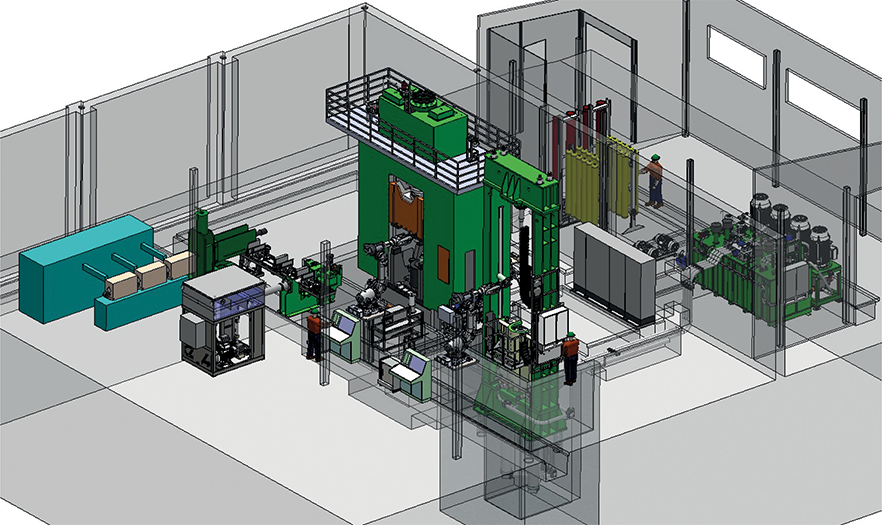

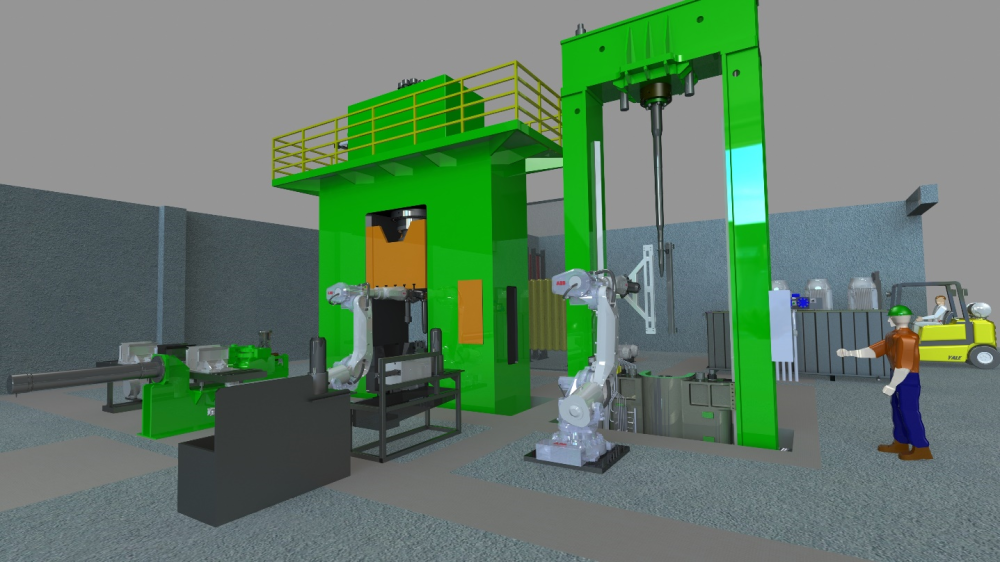

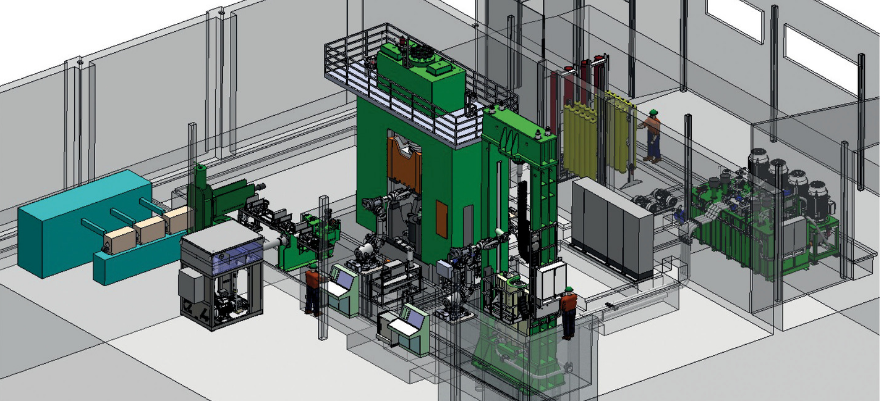

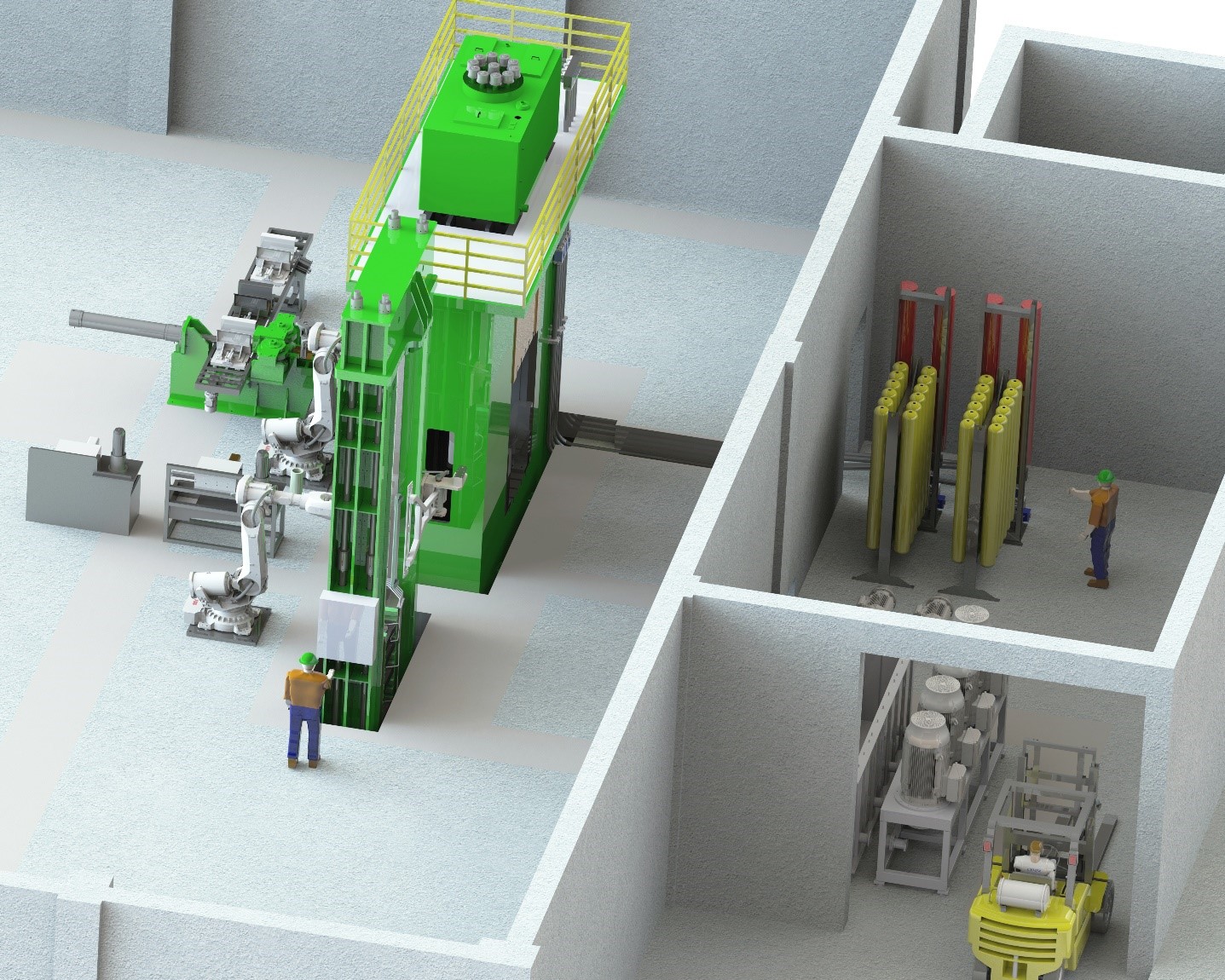

Robotic forging line with hydraulic presses 1000t and 350t. Servoteh designed and manufactured a hydraulic press for deep drawing and a hydraulic press for upsetting and piercing with equipment.
OUR SOLUTION

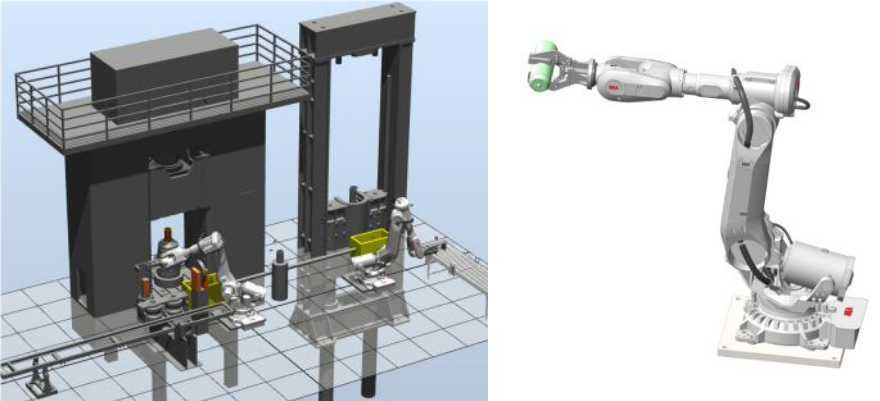

- ABB IRB6700 robot for 1000t press
- 1000 t hydraulic press for upsetting and piercing operations
- Accumulator station for 1000t hydraulic press
- Robot ABB IRB6700 for 350t hydraulic press
- 350t Hydraulic press for drawing operation
- Induction line for blanks heating
- 350t hot blanks shearing press
- Conveyor for cut blanks
- Mechanical calibration system for cut blanks
PRESS FOR UPSETTING AND PIERCING OPERATIONS
-
Max. Pressure 300 bar
-
Max. Force 1000 t
-
Installed power 450 KW 350 t hydraulic press for deep drawing
-
Max. Pressure 300 bar
-
Max. Force 350 t
-
Installed power 400 KW
